BMS Simulator/Charging Pile Test Equipment

Product Introduction

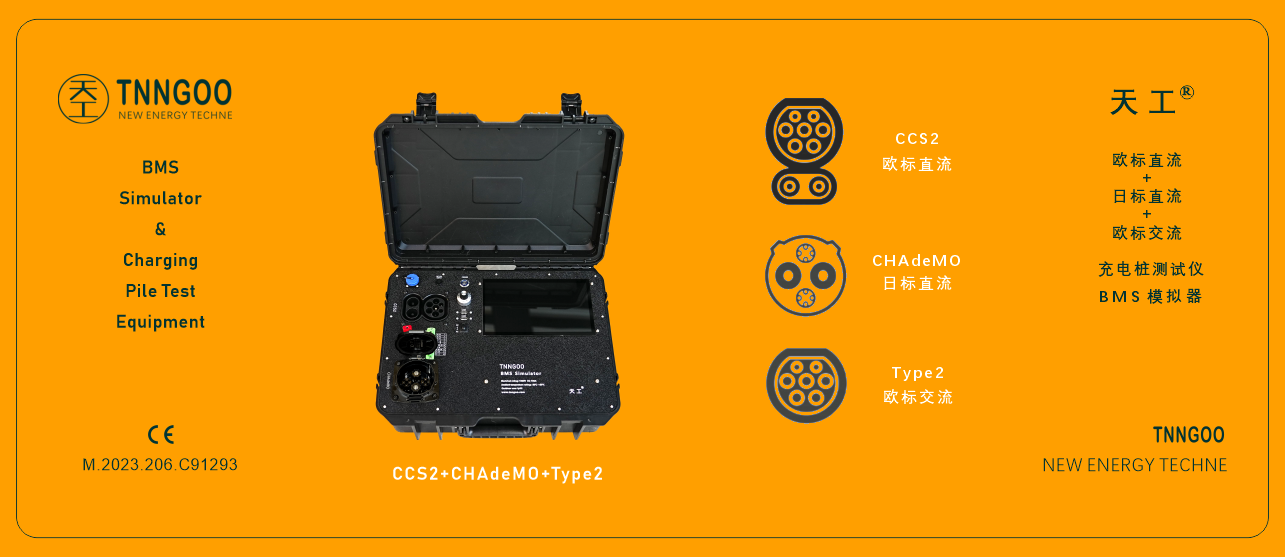

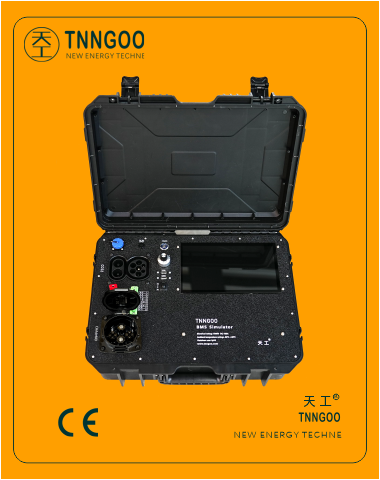

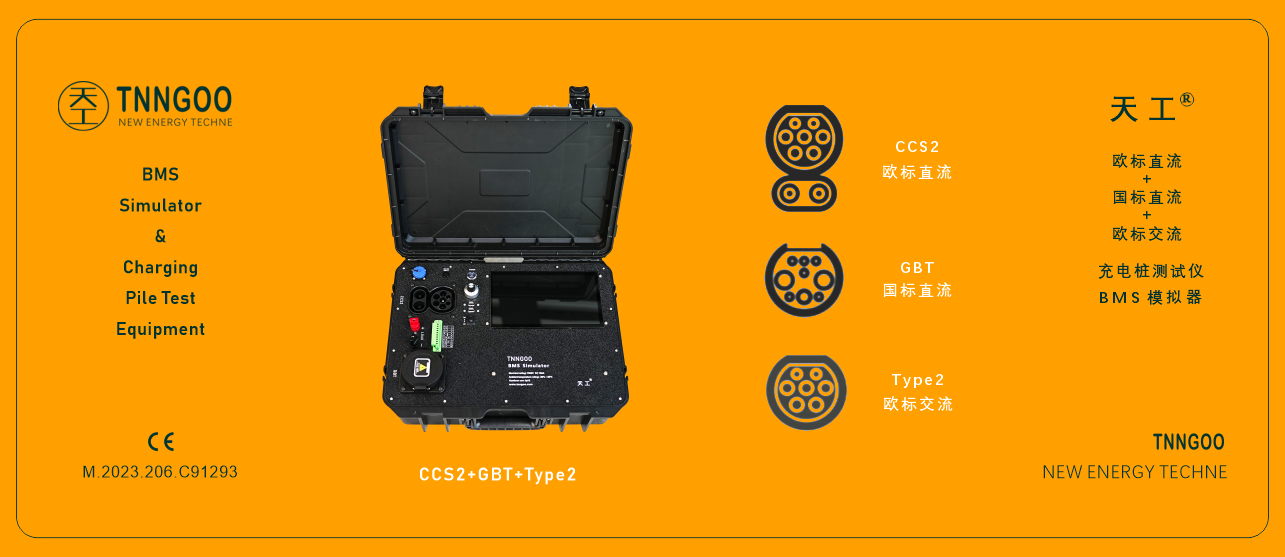

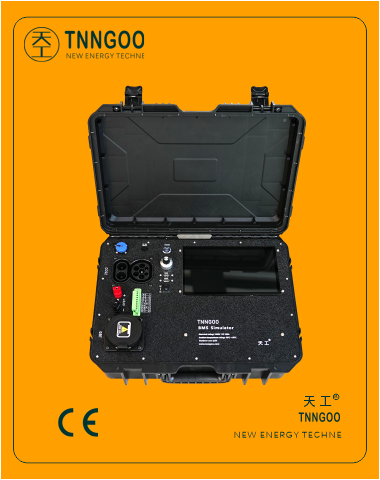

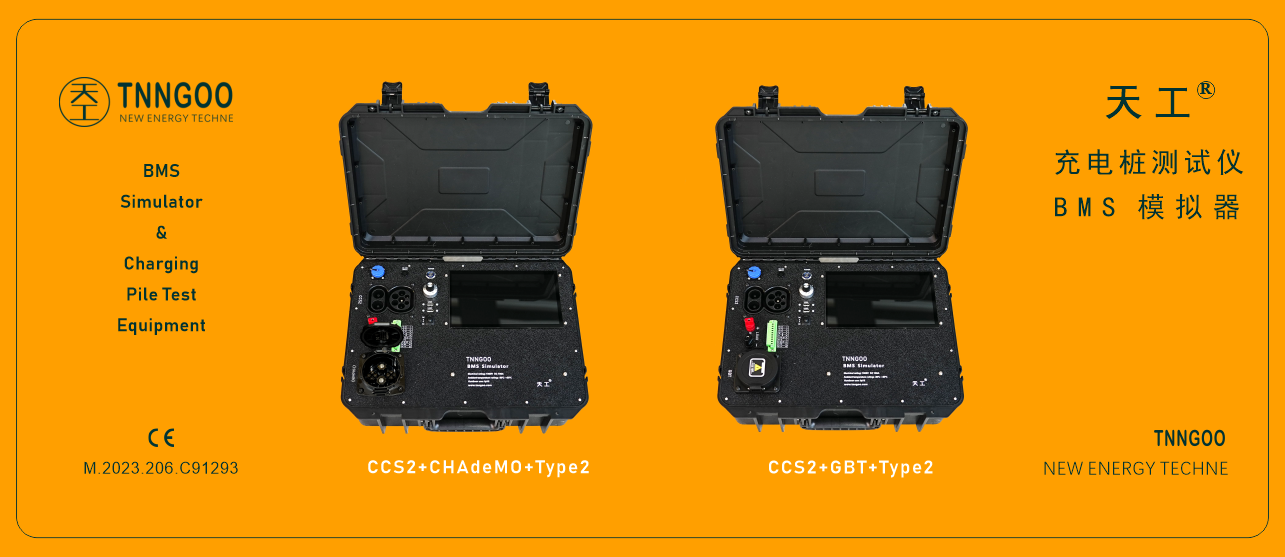

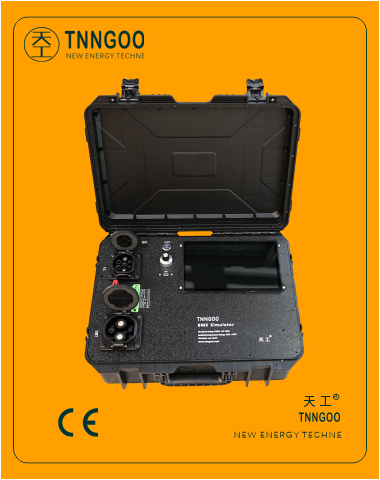

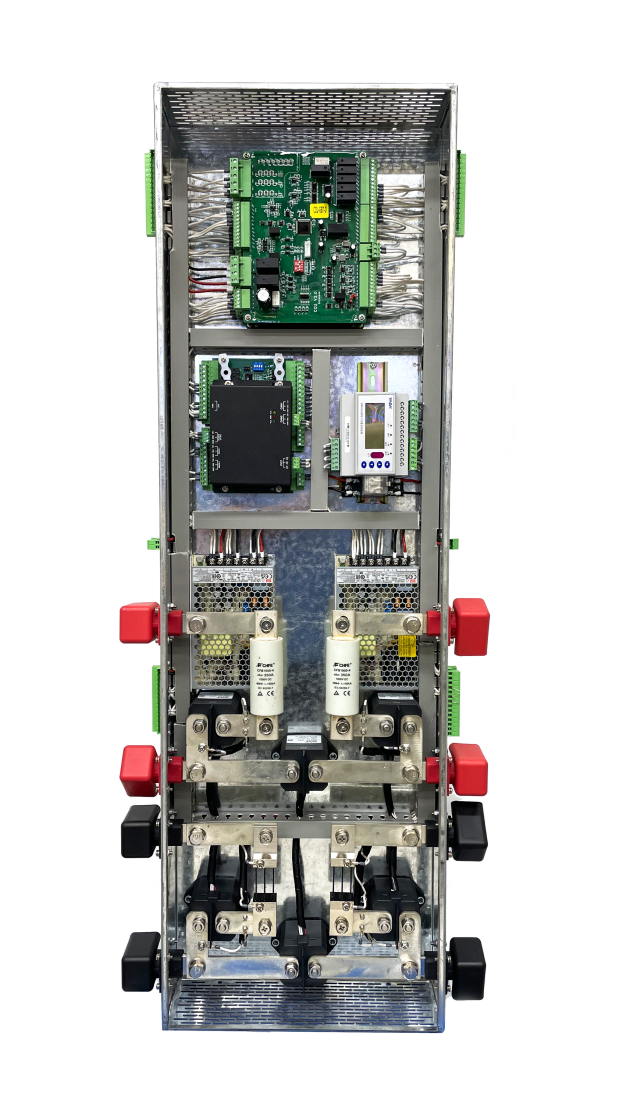

The TianGong Charging Pile Tester is a device developed by our company specifically for testing charging piles. It is primarily used for DC charging pile load detection, performance testing in production workshops, laboratories, after maintenance or upgrades of charging piles, and communication protocol testing.

■ National Standard Compliance: “GB/T 34657.1-2017 Electric Vehicle Conduction Charging Interoperability Test Specifications Part 1 Power Supply Equipment” testing project requirements:
■ Built-in simulated vehicle BMS software, compatible with “GB/T 27930-2015 Electric Vehicle Non-Vehicle Conduction Charger and Battery Management System Communication Protocol” and GB/T 27930-2011 standards:
■ European and American standard communication protocols: Charging communication meets IS015118 and DIN 70121 standards; power transmission meets IEC 61851 standards; vehicle socket complies with IEC62196 standards:
■ Japanese standard protocol meets CHAdeMO1.2 & 2.0 standards; vehicle socket complies with IEC62196 standards.

■ This product uses a touch screen design, with various charging standard interfaces that can be freely combined. The European and American standard interfaces are compatible with both AC and DC. The interface is simple and supports both Chinese and English. It is easy and convenient to use.

■ Real-time storage of message status for charging machines like CHM, CRM, CTS, CML, CRO, CCS, CST, CSD, CEM via USB.

■ Vehicle-side message content and message cycles can be set, simulating various vehicle message situations.

■ European and American standards can directly obtain communication data via an EVCC host computer using a CAN box.

■ During the BMS communication process, messages can be stored in real-time via USB, functioning similarly to a CAN box, facilitating direct usage and fault analysis for various personnel. This provides more intuitive and comprehensive fault analysis for charging piles.

■ Equipped with a 0.5 class energy meter to monitor the output voltage, current, power, and measure the charging energy of the charging pile in real-time. The data can also be synchronized with the BCS messages.

■ The SOC increases automatically, and the charging time can be set to enable an automatic aging test function.

■ Includes interoperability testing, insulation fault testing, gun removal testing, auxiliary source reverse connection, no connection testing, and more.

■ Equipped with signal, voltage, current, CC1, auxiliary power, and other output terminals for connection with other test instruments to test and verify pile-end signals.

■ Includes an integrated battery voltage simulator with a voltage range of 100-1000V for testing charging startup sequences.

■ Charging pile sockets (National Standard, European Standard, American Standard, and Japanese Standard options available).
